Raw Dog v1.0

No-Code Tool for Raw Data Processing & Plotting

Overview

Raw Dog is a no-code GUI for turning raw .txt and .csv data into clean plots. It’s a fast, intuitive alternative to MATLAB and Python for signal analysis.

Quick Demo (30s)

Key Features

• Instant workflow: Load → Parse → Process → Visualize
• Signal operations: filter, normalize, resample, and more
• Comparison tools: Bland-Altman, correlation, and error histograms
• Customizable plots: Multi-subplot layouts with stylization options
• Transparent backend: Inspect, edit, and run custom Python scripts

Full Demo (YouTube)

Screenshots

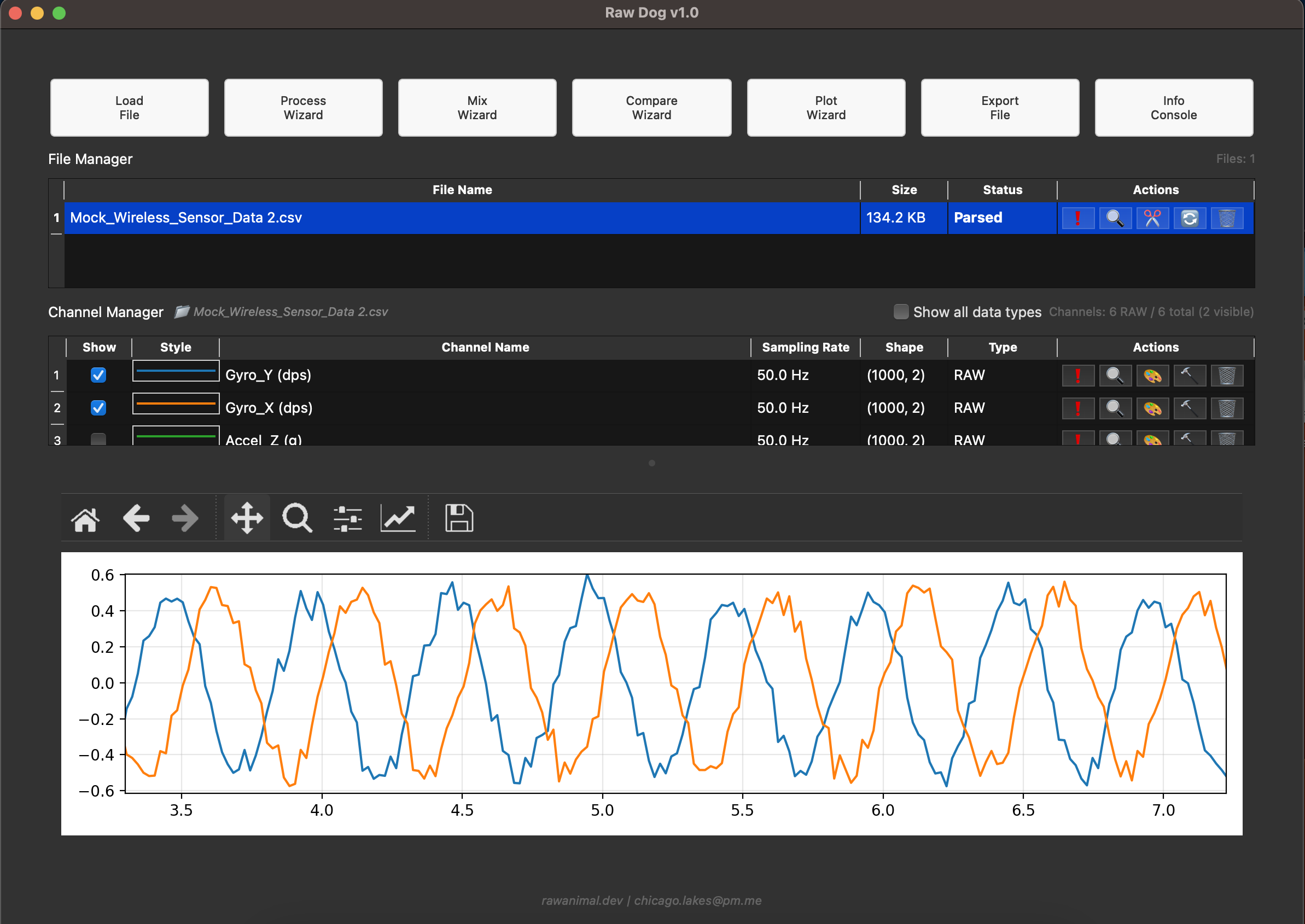

Main Interface: Load data, auto-parse, and visualize raw signals.

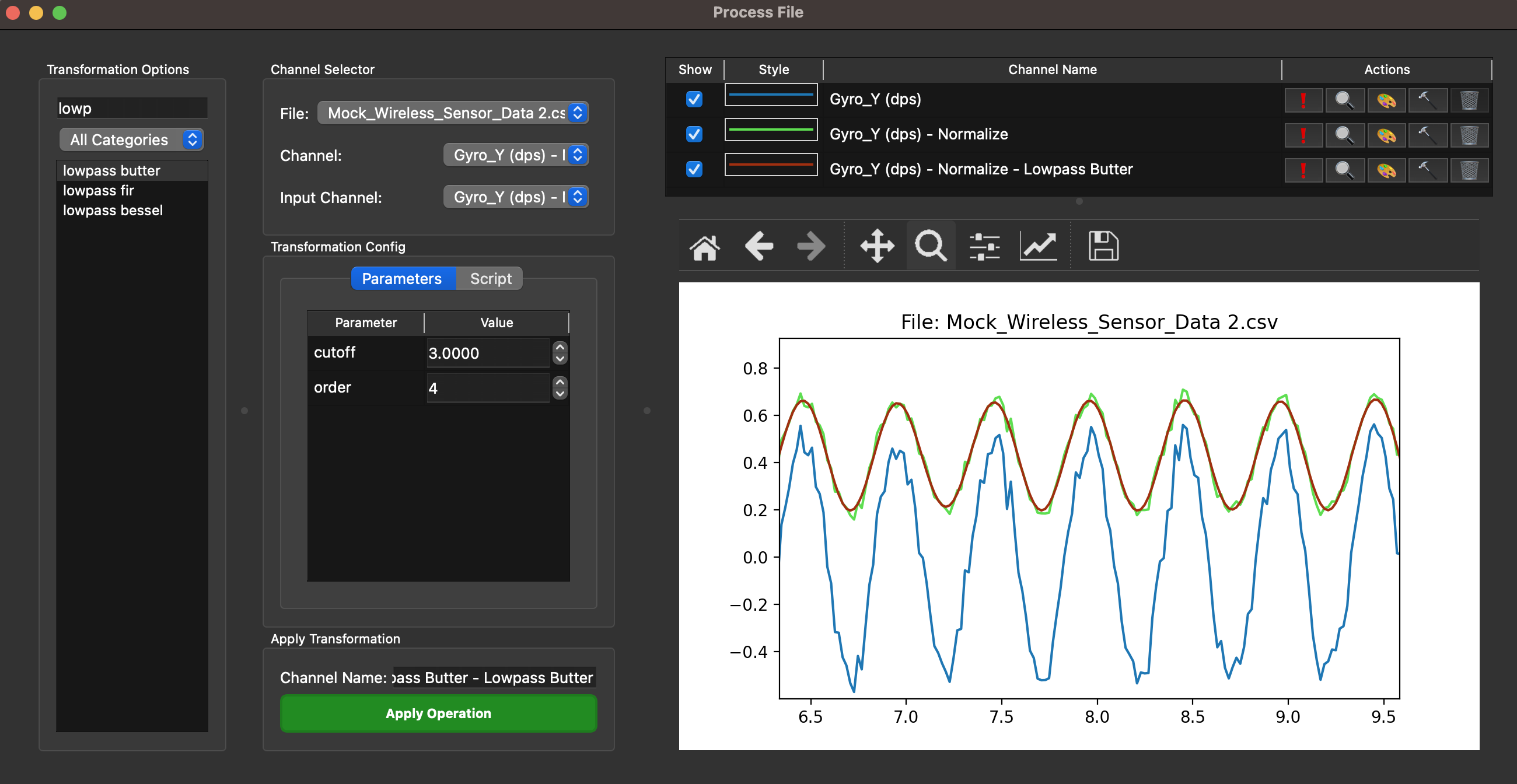

Process Wizard: Apply transformations like filtering, normalization, and resampling — no code needed.

Mix Wizard: Mix two signals using templates or custom expressions.

Compare Wizard: Visualize agreement between channels using Bland-Altman, correlation, or error histograms.

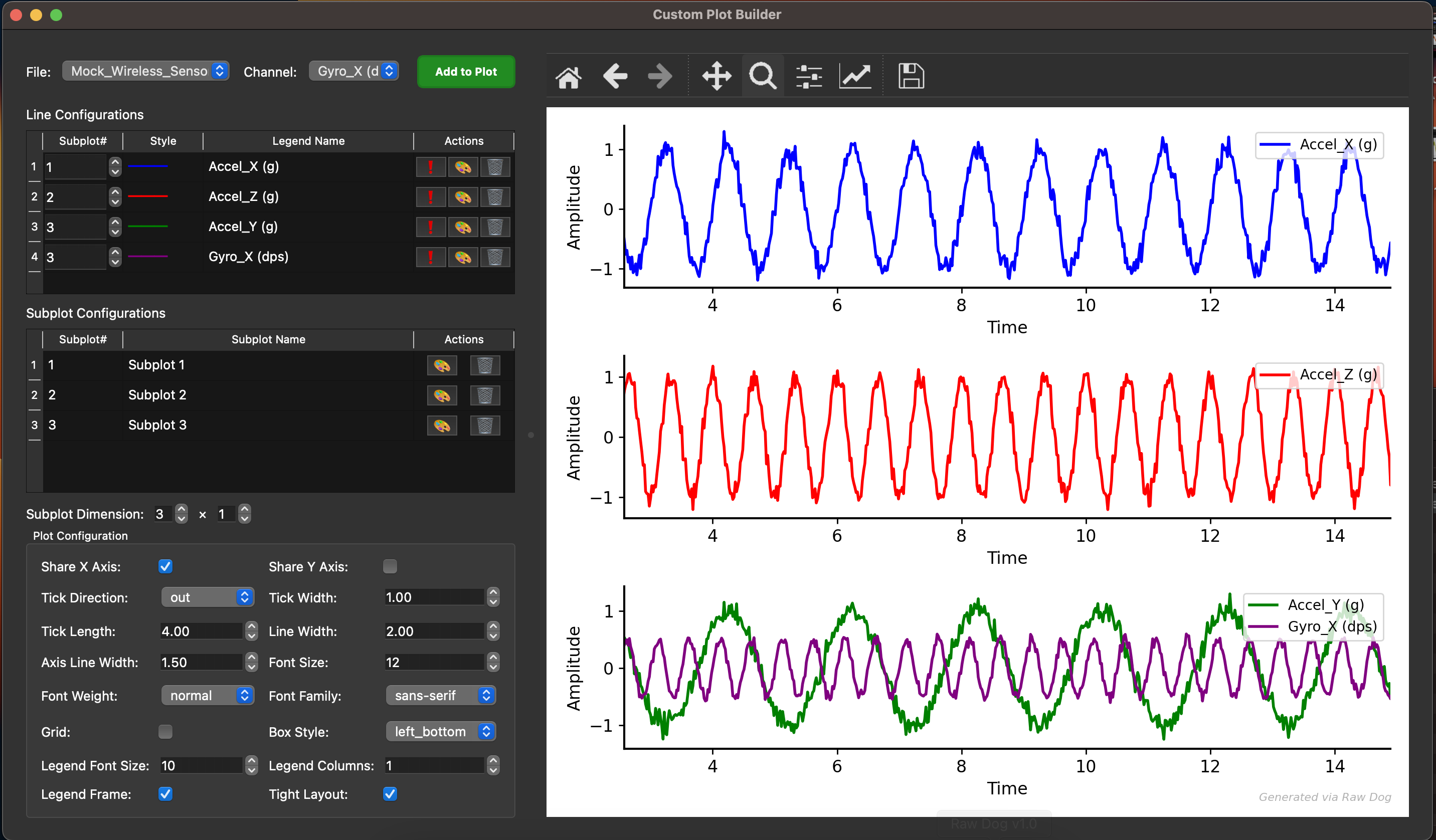

Plot Wizard: Build multi-subplot figures with stylized plots and full layout control.

Note

This is a beta release. I'm actively working to improve stability. It's free to use . If you find Raw Dog helpful and want to support future development, please reach out or share.

Download

Choose the version for your system:

Sample Data:

Install Instructions

Follow these steps to get started — no coding required.

1. Download the correct .zip file for your system (see buttons above).
2. Unzip and open the app:
   • Windows:
     1. Right-click the downloaded .zip file and select "Extract All..." to extract it
     2. Open the folder named GUI8
     3. Double-click GUI8.exe (Type = Application) to launch the tool
     4. Windows may show a warning "Windows prevented an unrecognized app from starting." If this happens:
        1. Click "More Info" in the warning window
        2. Click "Run anyway" to launch the tool
     (Note: The app is named "GUI8.exe" instead of "RawDog.exe" to avoid false virus detection.)
   • macOS:
     1. Double-click the downloaded .zip file to extract it
     2. Double-click RawDog.app to launch the tool
     3. You may see a security warning "cannot be opened because the developer cannot be verified." If this happens:
        1. Right-click (or Control-click) on the app
        2. Select "Open" from the context menu
        3. You'll see the warning again, but now with an "Open" button
        4. Click "Open" to launch the tool
3. The app may take 1–2 minutes to launch the first time. This is expected — please be patient.
4. Start with the included test data. Large datasets may take longer to load or may appear unresponsive at first — give it a moment.

Compatibility Notes:

• macOS: Tested on macOS 12 and above. Compatible with both Intel and Apple Silicon (M1/M2) machines.
• Windows: Tested on Windows 10 (64-bit). Compatibility with other versions (e.g. Windows 11 or older) has not been verified.
